Filtering parameters management

Filtering methods

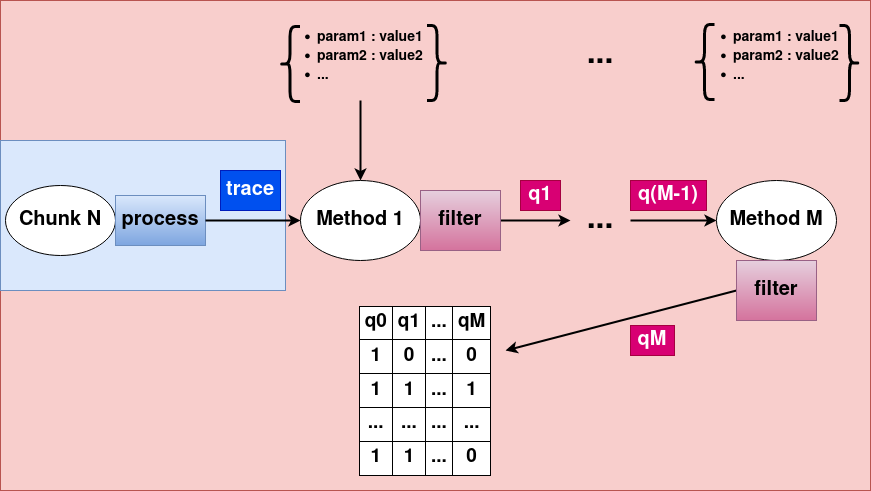

Filtering methods aim at attaching quality factors to each data point in the input dataset (see scheme above). Each FilteringMethod class comes with a ParamSet containing the necessary parameters.

As of now (September 2024), four filtering methods are implemented :

Fat Filtering method

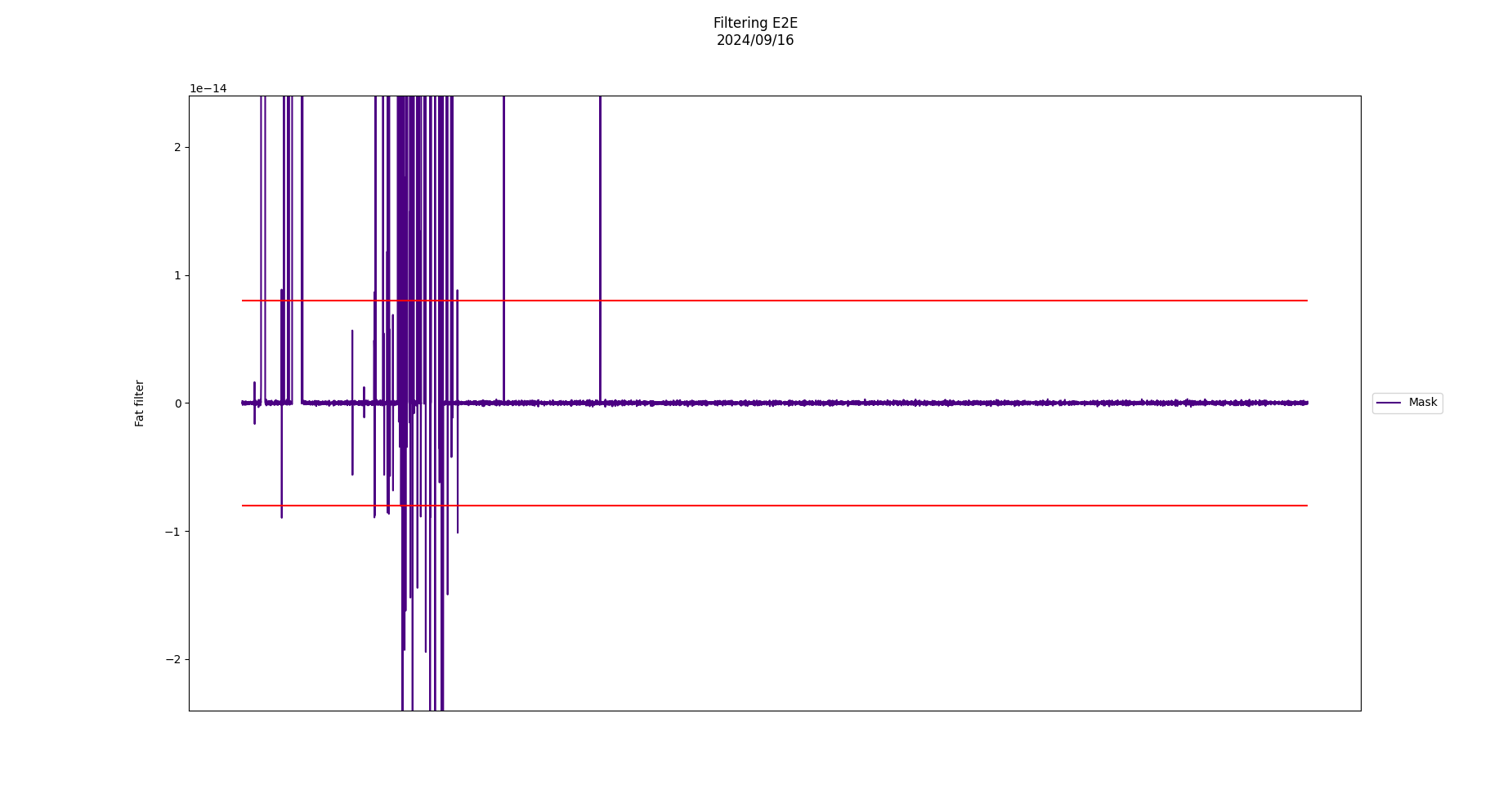

The FatFilterMethod method consists in cutting out the data out of the bounds defined by the fat_filter parameter.

>>> import palantir.filters as filters

>>> method = filters.fat_filter.FatFilterMethod()
>>> method.getAsDict()

Good periods method

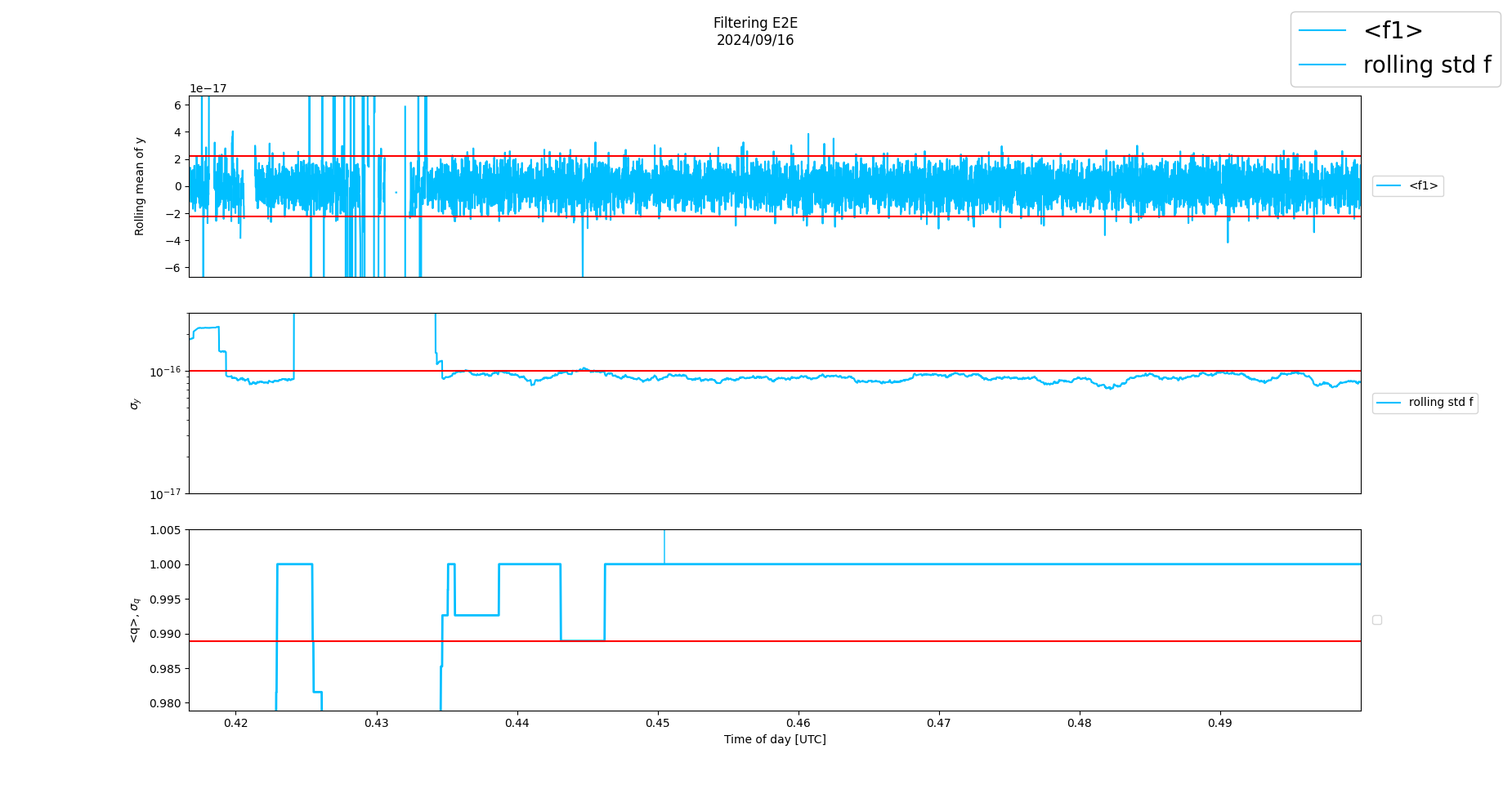

The GoodPeriodsMethod method removes bad periods from the trace detecting regions of non-stationary quality

>>> import palantir.filters as filters

>>> method = filters.good_periods.GoodPeriodsMethod()
>>> method.getAsDict()

Restrict method

RestrictMethod

>>> import palantir.filters as filters

>>> method = filters.good_periods.RestrictMethod()
>>> method.getAsDict()

Cycle slips method

CycleSlipsMethod

>>> import palantir.filters as filters

>>> method = filters.cycle_slips.CycleSlipsMethod()
>>> method.getAsDict()

Default parameters

Each Observable instance has its own default filtering parameters attached in a .yml file on the computing server. See the wiki for more information.

Given an Observable instance, here is how the filtering parameters can be read.

>>> observable.timeChunk.filteringMethods

Customize parameters

To customize filtering parameters, we must start from an existing Observable instance and its default associated filtering methods (See the wiki for more information).

First, let’s start from an Observable instance, here E2EObservable

>>> import palantir.links as links

>>> startDate = '240128'
>>> endDate = '240128'
>>> startTime = '000000'
>>> endTime = '100000'

>>> STH2_ID = 1
>>> fiberLinkProcessor = links.E2E_Freelink(STH2_ID, startDate, endDate, startTime, endTime, 'UTC')
>>> observable = fiberLinkProcessor.e2e

Then, we get its default TimeChunk as a dictionary, fed from its associated .yml file

>>> observable.loadDefaultTimeChunk()
>>> timeChunkDict = observable.timeChunk.getAsDict()

Finally, let’s update the __filter_fat__ parameter of the dictionary that will later feed a FatFilterMethod instance.

>>> timeChunkDict["methods"][1]["parameters"]["filter_fat"] = 9e-16
>>> observable.process(e2eTimeChunk=timeChunkDict)
